Single Sign On (SSO) Guide for CircuiTree

Overview

This guide explains:

  • Why organizations may choose Single Sign-On (SSO) instead of CircuiTree-only MFA

  • How to configure Microsoft Entra ID (Azure AD) for CircuiTree SSO

  • How to complete the final configuration in CircuiTree

  • How to troubleshoot common SSO issues

This setup uses OIDC (OpenID Connect) and supports automatic user provisioning and group-based access.

Why Use Single Sign-On (SSO) Instead of CircuiTree MFA?

CircuiTree supports both Multi-Factor Authentication (MFA) and Single Sign-On (SSO). While MFA improves login security, SSO provides additional control, automation, and scalability for organizations that already manage users in Microsoft Entra ID.

CircuiTree MFA (Baseline Security)

CircuiTree MFA:

  • Adds a second verification step after username/password

  • Is configured and managed inside CircuiTree

  • Requires users to maintain separate CircuiTree credentials

MFA strengthens security but does not centralize identity or user lifecycle management.

SSO with Microsoft Entra ID (Recommended)

With SSO enabled:

  • CircuiTree does not store or manage passwords

  • Authentication is handled entirely by your organization’s Entra ID

  • Only users inside your directory can sign in

  • MFA, device rules, and Conditional Access are enforced by your IT policies, not CircuiTree

Key Benefits of SSO

Stronger security

  • Access restricted to users in your Entra ID tenant

  • Entra ID MFA and Conditional Access policies apply automatically

Centralized user management

  • Add, update, or remove users once, in Entra ID

  • No separate CircuiTree passwords to manage

  • Entra ID groups can control CircuiTree access

Automatic user provisioning

  • New users are created automatically on first login

  • Access is assigned based on Entra ID group membership

  • Changes in group membership update access automatically

Improved user experience

  • One login across company systems

  • Familiar Microsoft sign-in experience

Reduced IT & support overhead

  • Fewer password reset requests

  • Clear responsibility split: IT manages identity, CircuiTree consumes it

MFA with SSO

MFA is still enforced — but by Microsoft Entra ID, not CircuiTree.

  • CircuiTree MFA is bypassed when SSO is enabled

  • Entra ID MFA and Conditional Access policies take precedence

  • Security remains consistent across all company applications

Before You Begin

You will need:

  • Admin access to Microsoft Entra Admin Center

  • Admin access to CircuiTree

  • A secure place to store the Client Secret value (visible only once)

Microsoft Entra ID Configuration

App Registration

In Microsoft Entra Admin Center:

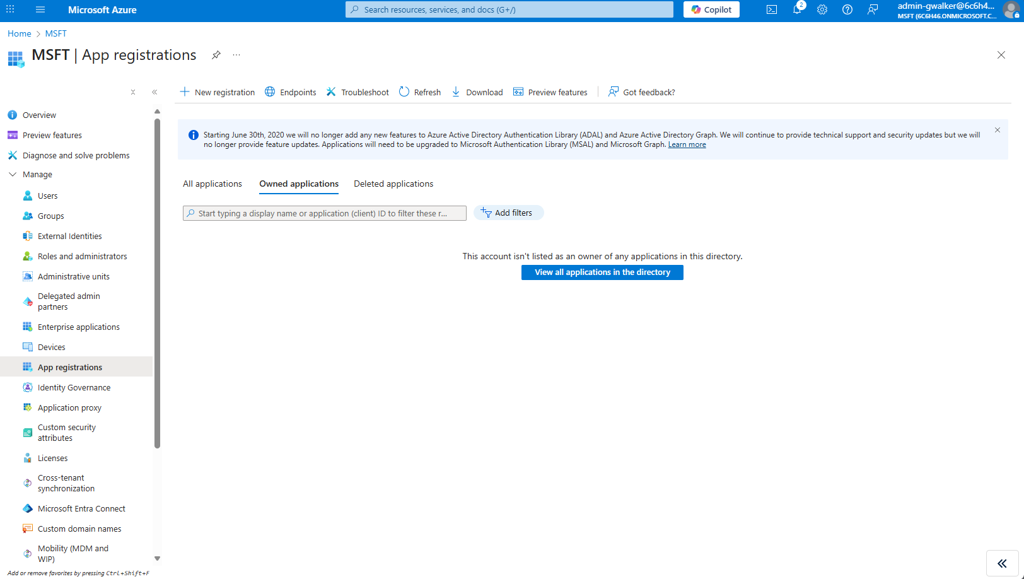

App Registration.png

  • Navigate to App registrations

  • Create a new app registration

  • Use:

    • Name: CircuiTree OIDC

    • Supported account types:
      Accounts in this organizational directory only (Single tenant)

Authentication Settings

In the app’s Authentication section:

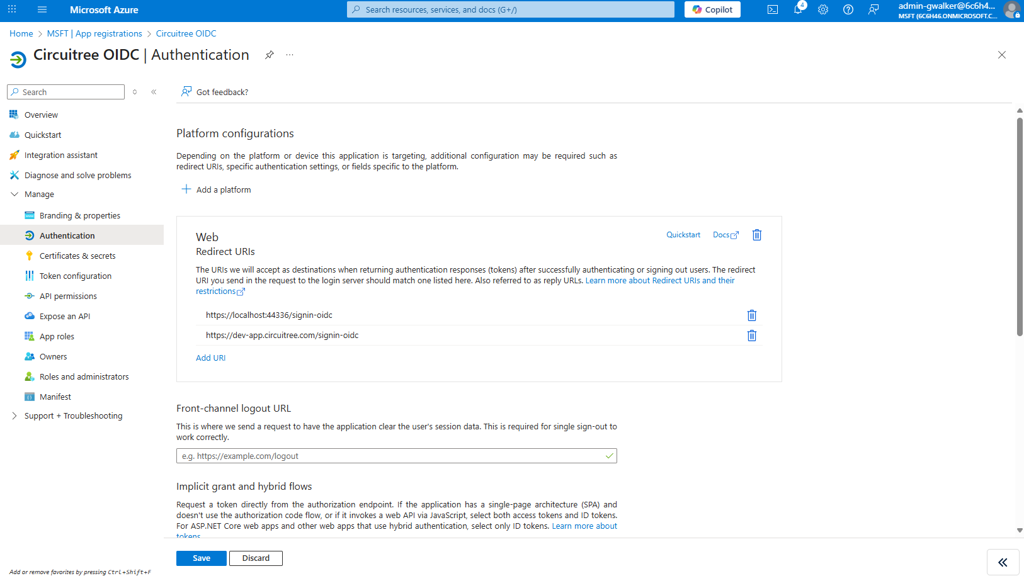

Authentication configuration page.png

  • Add the following Redirect URI under Web:

    https://app.circuitree.com/signin-oidc

  • Enable ID tokens under Implicit grant and hybrid flows

  • Confirm supported account type is Single tenant

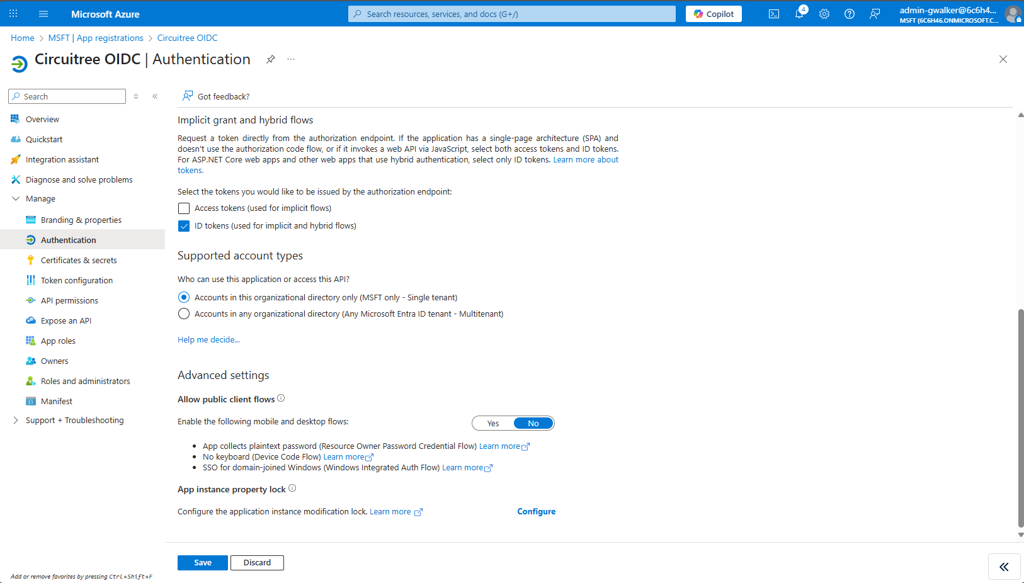

Supported account types section.png

Client Secret

In Certificates & secrets:

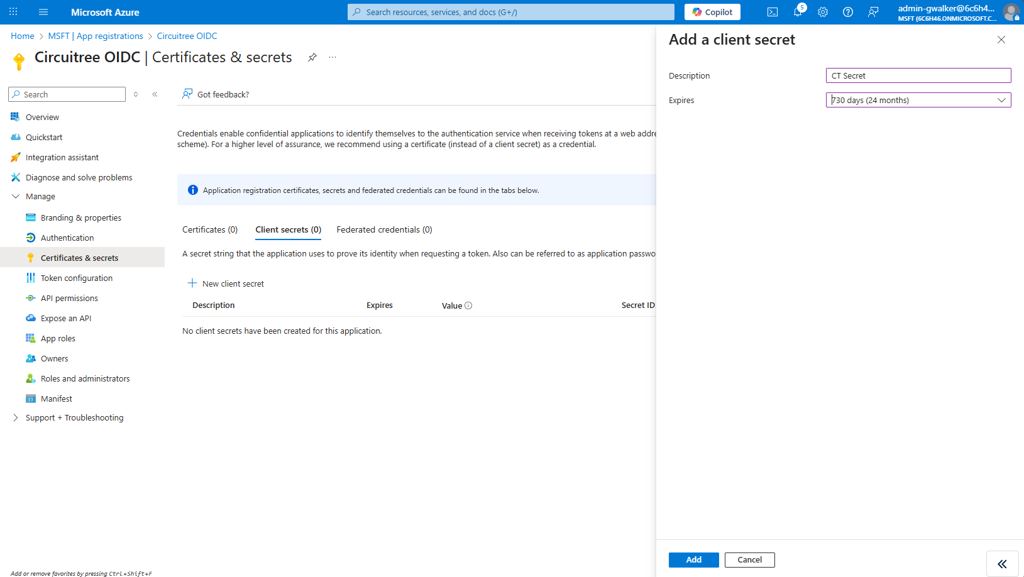

Add a client secret panel.png

  • Create a new client secret

  • Use a 24-month expiration (730 days)

  • Copy and securely store the Secret VALUE immediately

This value cannot be retrieved later.

API Permissions

In API permissions:

API permissions list.png

  • Add Microsoft Graph Application permissions:

    • Directory.Read.All

    • Group.Read.All

  • Confirm User.Read (Delegated) is present

  • Grant Admin consent

Grant admin consent confirmation dialog.png

Group Claims (Optional but Recommended)

If using group-based access:

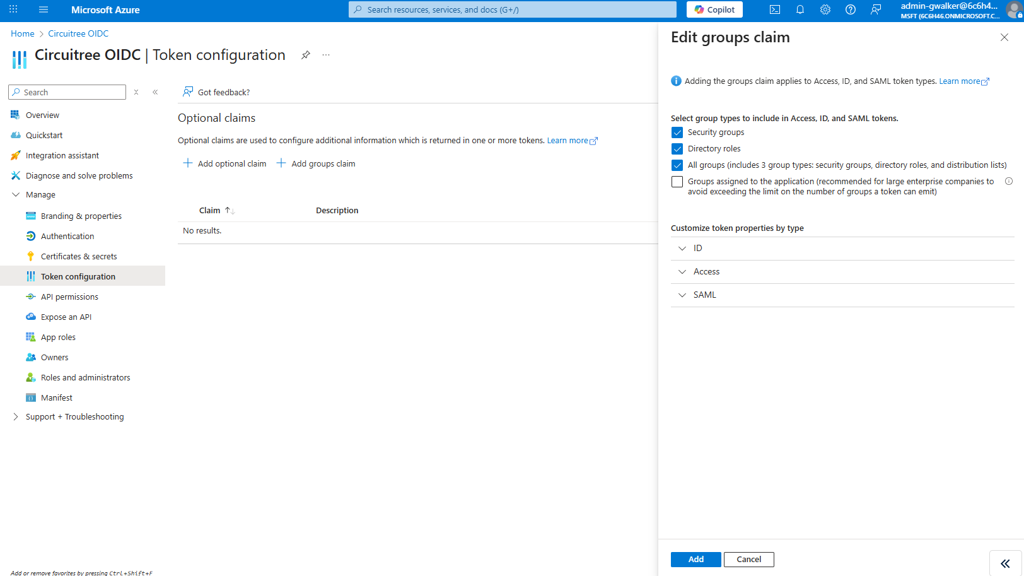

Edit groups claim panel.png

  • Go to Token configuration

  • Add a Groups claim

  • Select:

    • Security groups

    • Directory roles

    • All groups

This allows CircuiTree to assign access based on Entra ID group membership.

Required Values for CircuiTree

From the Entra ID app:

  • Application (Client) ID

  • Directory (Tenant) ID

  • Client Secret VALUE

CircuiTree Configuration

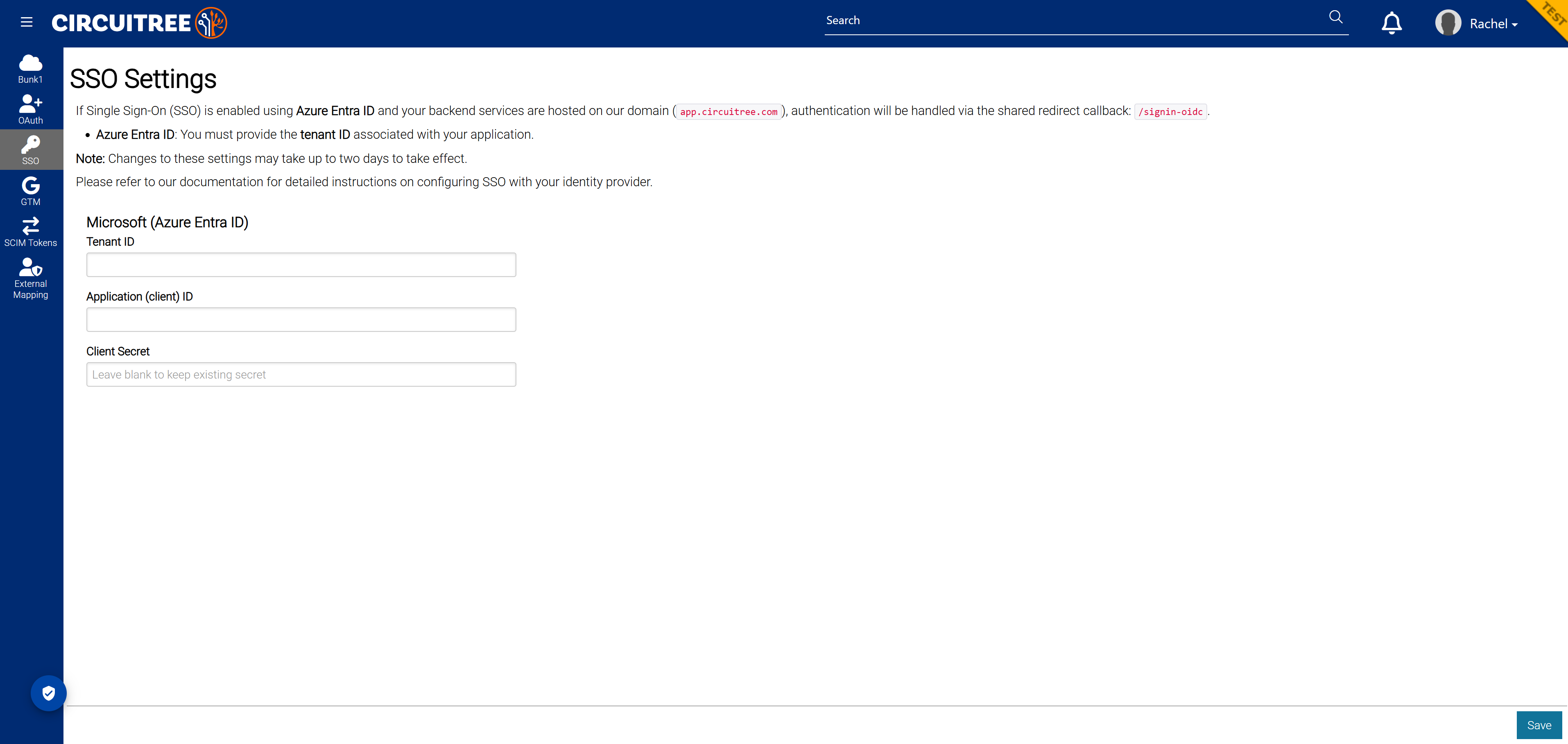

In CircuiTree → Config → Integrations → SSO, enter:

Screenshot 2026-02-03 152032.png

  • Client ID: Application (Client) ID

  • Client Secret: Client Secret VALUE

  • Tenant ID: Directory (Tenant) ID

  • Authority URL:

    https://login.microsoftonline.com/{TenantID}/v2.0

Save the configuration and test login with a user in Entra ID.

Validation Checklist

After setup:

  • Confirm a test user can log in successfully

  • Confirm correct access is assigned based on group membership

  • Set a reminder for Client Secret expiration (24 months)

Common Issues & Troubleshooting

Login fails after Microsoft sign-in

Check:

  • Client ID, Tenant ID, and Client Secret match Entra ID

  • Client Secret is not expired

  • Redirect URI is exactly:

    https://app.circuitree.com/signin-oidc

User logs in but has no or incorrect access

Check:

  • Group claims are enabled in Entra ID

  • User is in the correct Entra ID group

  • Groups are mapped correctly in CircuiTree

Have the user log out and back in to refresh access.

New user logs in but is not created in CircuiTree

Check:

  • API permissions include Directory.Read.All and Group.Read.All

  • Admin consent was granted

User disabled in Entra ID still appears active in CircuiTree

  • Group membership updates sync on login

  • Disable/enable sync may not be immediate

If access persists unexpectedly, contact CircuiTree Support with:

  • Organization name

  • User email

  • Time the user was disabled in Entra ID

MFA behavior is different than expected

  • CircuiTree MFA is bypassed when SSO is enabled

  • Entra ID MFA and Conditional Access policies apply instead

Review MFA rules in Entra ID.

Concern: “Anyone with a Microsoft account can log in”

Check:

  • Supported account type is Single tenant

  • Only users in your Entra ID directory should authenticate

Support Assistance

If issues continue, please contact support and provide:

  • Organization name

  • Affected user email(s)

  • Screenshots or error messages

  • Confirmation that:

    • IDs and secret were verified

    • Admin consent was granted

    • Group claims are configured

Completion

Once configured, users can authenticate to CircuiTree using Microsoft Entra ID (OIDC Single Sign-On) with centralized security and automatic provisioning.
